Right Angle Spade Connector 90Pcs Nylon Crimp Flag Terminals Tnisesm

Description

Product Overview

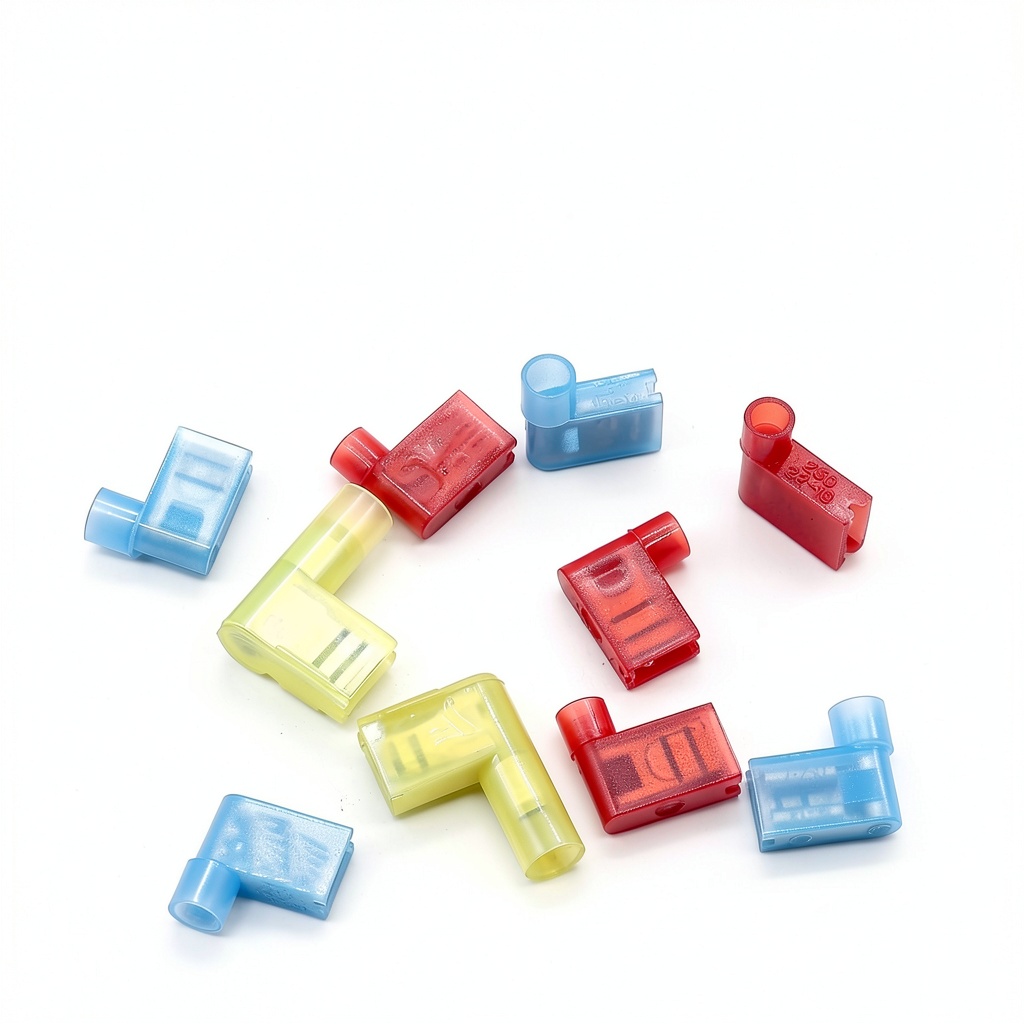

The Tnisesm 90‑piece right angle spade connector set is engineered for professionals and hobbyists who demand precision, durability, and ease of installation. Each terminal features a flag‑shaped female crimp design that simplifies the wiring process: simply insert the wire, press the crimp tool, and achieve a secure, solder‑free connection. The terminals are constructed from high‑grade nylon housing that resists abrasion, chemical exposure, and temperature fluctuations, while the internal copper core delivers superior electrical conductivity and minimal voltage drop across a wide range of applications.

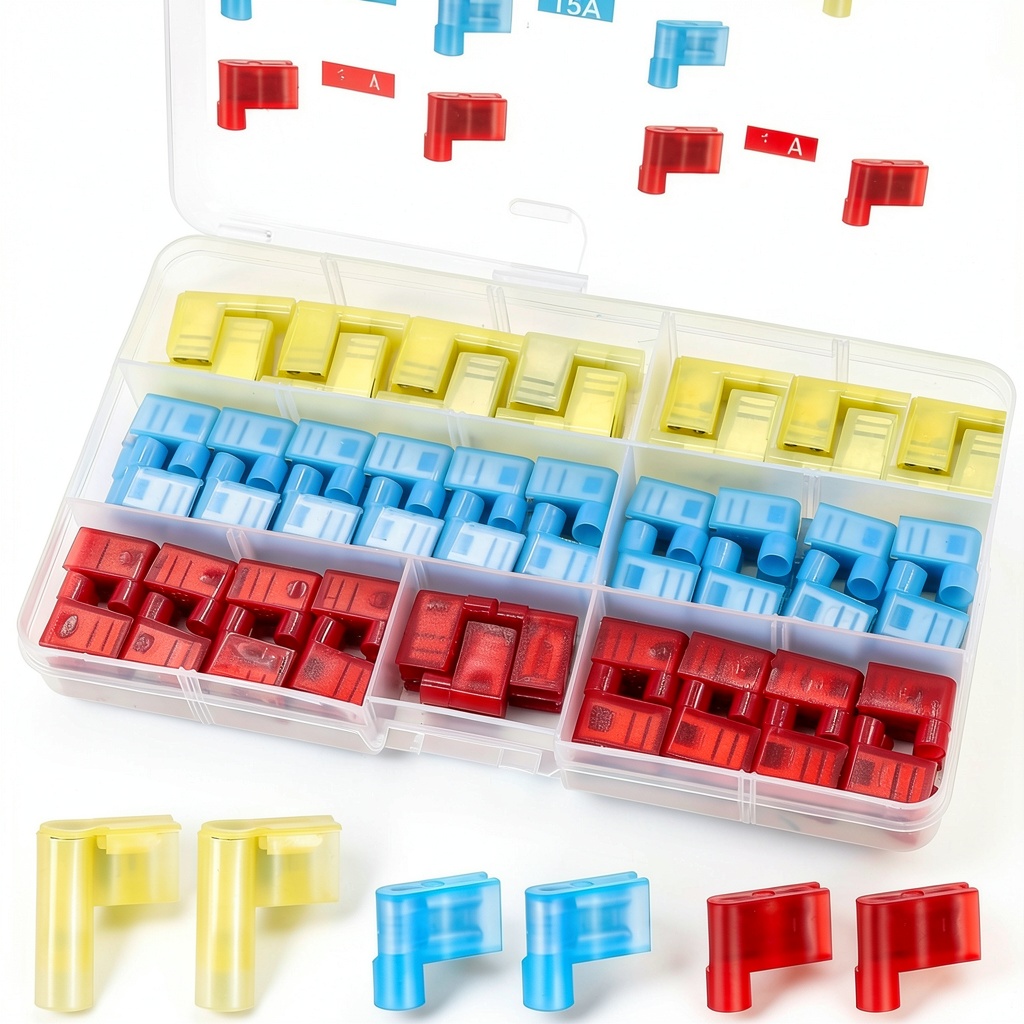

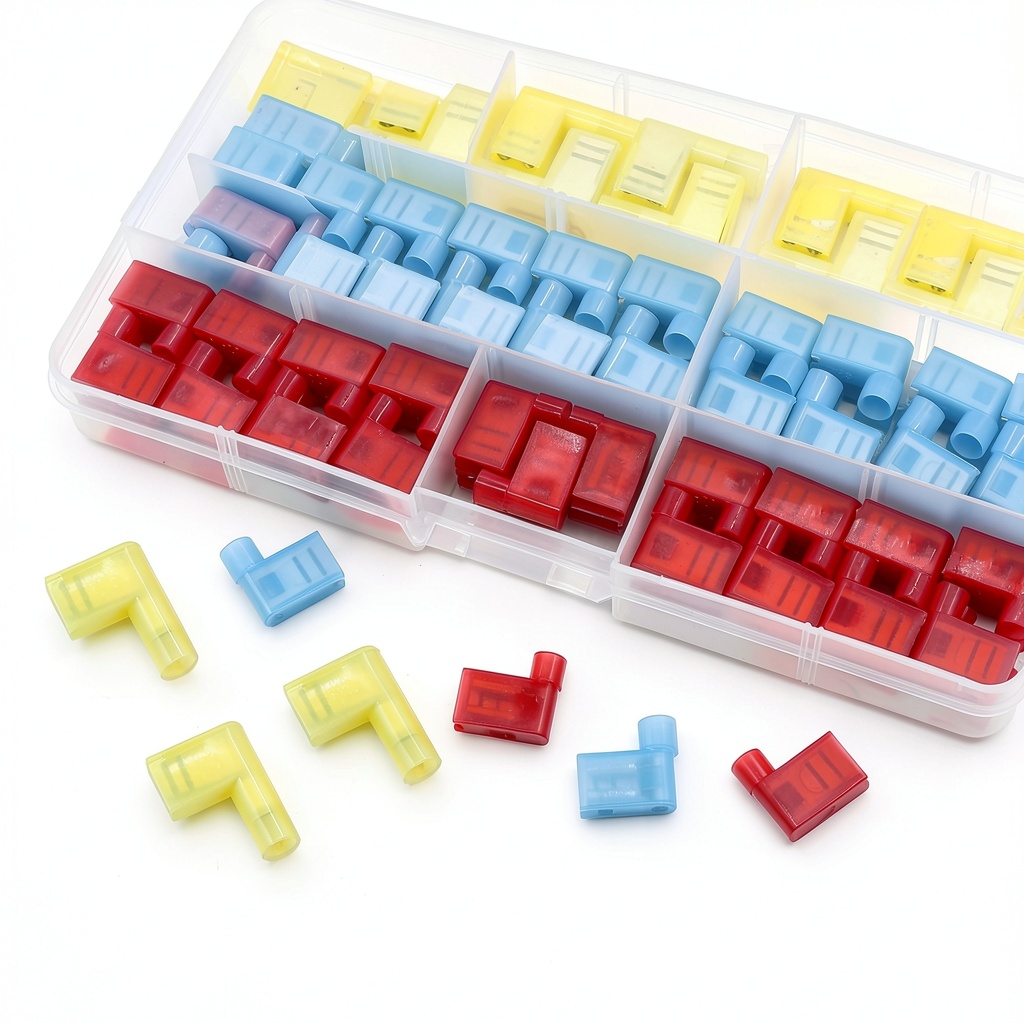

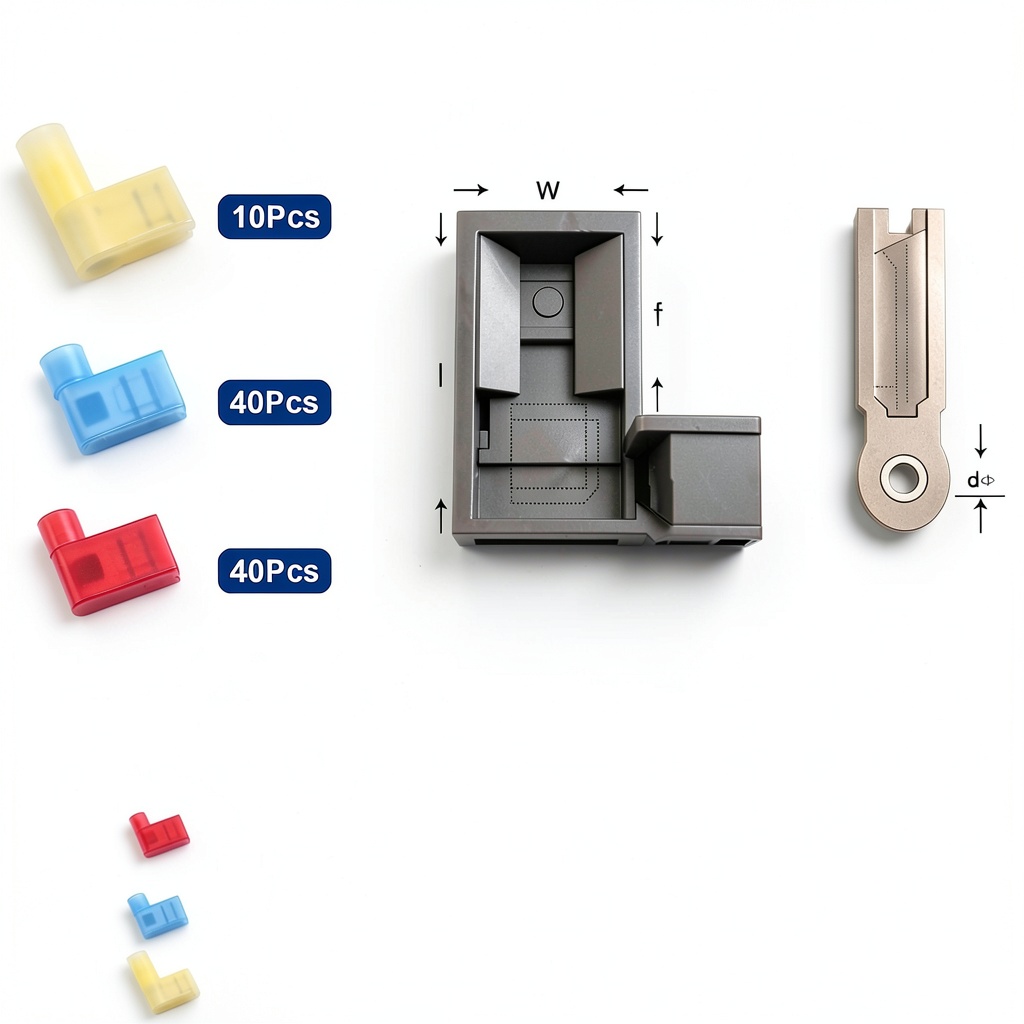

Packaging includes three distinct color‑coded groups to streamline wire gauge identification: 40 red terminals for 22‑18 AWG, 40 blue terminals for 16‑14 AWG, and 10 yellow terminals for 12‑10 AWG. This thoughtful organization reduces the chance of mismatched connections and speeds up assembly time on complex projects. The right‑angle orientation of each terminal is specifically designed to fit into confined spaces, preventing the wire from bending sharply and reducing mechanical stress that could lead to premature failure.

Dimensions of the entire kit measure 7.95 x 4.13 x 0.67 inches and weigh just 5.61 ounces, making it portable for field service technicians and easy to store in workshop drawers. The product meets industry standards for electrical safety and has earned a solid customer rating of 4.4 out of 5 stars, reflecting its reliability and performance in real‑world conditions.

Usage

These right angle spade connectors excel in a variety of environments, from industrial control panels and automation equipment to automotive harnesses and home‑improvement projects. The robust nylon housing protects the terminals from oil, moisture, and dust, making them suitable for outdoor installations, marine applications, and harsh factory floors. Because the connectors are designed for quick disconnect, they are ideal for maintenance scenarios where rapid removal and replacement of wiring sections are required without sacrificing connection integrity.

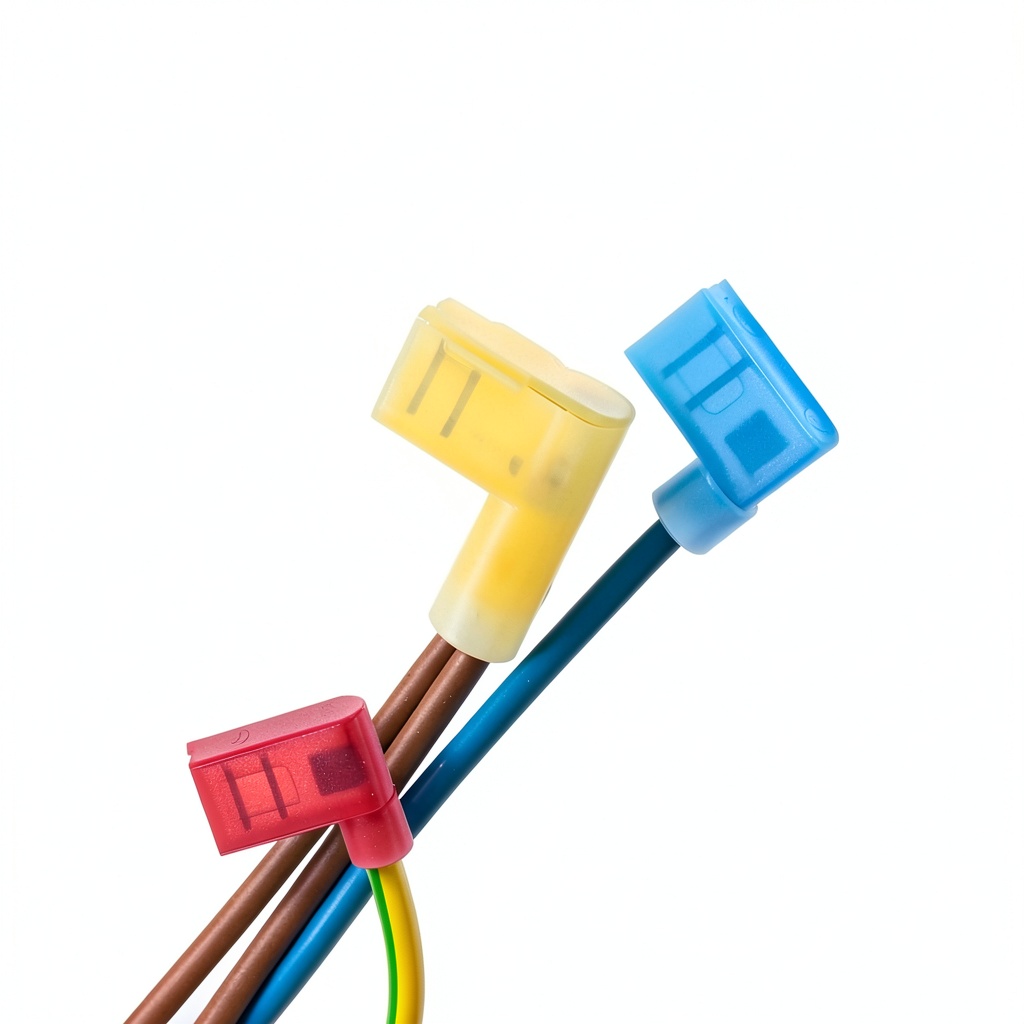

When wiring dense terminal blocks or routing cables through conduit, the right‑angle profile ensures that the wire runs parallel to the board surface, eliminating the need for additional bends or strain relief components. This not only saves space but also improves the overall aesthetic of the wiring layout, which is especially important in visible panels or equipment enclosures where a clean appearance reflects professional workmanship.

Electricians and technicians appreciate the color‑coded system for its ability to reduce errors during installation. By matching the terminal color to the appropriate wire gauge, the risk of over‑ or under‑sizing connections is minimized, which in turn enhances the longevity of the electrical system and reduces the likelihood of overheating or short‑circuit events.

Why Choose Us

Choosing the Tnisesm right angle spade connector set means selecting a product backed by rigorous quality control and a commitment to customer satisfaction. Each terminal undergoes a multi‑stage testing process that verifies mechanical strength, crimp retention, and electrical resistance, ensuring that every piece meets or exceeds industry specifications. The copper core is annealed to provide optimal flexibility during crimping while maintaining a low resistance path for current flow.

Our design team focused on creating a connector that balances performance with user‑friendly features. The flag‑shaped terminal allows for a single‑handed insertion, which speeds up assembly and reduces the chance of hand fatigue during large‑scale projects. Additionally, the right‑angle configuration prevents accidental disengagement caused by cable movement or vibration, a common issue with straight‑through terminals in dynamic environments.

Beyond the product itself, Tnisesm offers responsive after‑sales support, including technical assistance for proper crimping techniques, compatibility guidance, and a straightforward return policy should any component not meet expectations. This comprehensive service package ensures that customers receive not only a high‑quality component but also the expertise needed to maximize its benefits.

Key Features

• Flag‑shaped nylon crimp terminals enable quick, tool‑free insertion for faster assembly.
• Copper core provides excellent conductivity, reducing voltage drop and heat buildup.
• Right‑angle design secures connections in tight spaces and prevents accidental pulls.
• Color‑coded sets simplify wire gauge identification, minimizing installation errors.
• Responsive customer support and warranty ensure reliable after‑sales service.

FAQ

What wire gauges are compatible with these connectors?

The set includes terminals for three gauge ranges: red terminals for 22‑18 AWG, blue terminals for 16‑14 AWG, and yellow terminals for 12‑10 AWG. This covers most common low‑voltage and control wiring applications.

Can I use these connectors with a standard crimping tool?

Yes. The terminals are designed to work with standard hand‑crimp tools that support the appropriate die size. Ensure the tool is set to the correct pressure to achieve a firm crimp without damaging the nylon housing.

Are the connectors suitable for outdoor or marine use?

The high‑quality nylon housing offers resistance to moisture, oil, and UV exposure, making the connectors suitable for outdoor installations and marine environments when used with appropriate sealing methods.

How does the right‑angle design improve reliability?

The right‑angle orientation keeps the wire parallel to the mounting surface, reducing mechanical stress on the connection point. This design minimizes the chance of the terminal being pulled out due to cable movement or vibration.

What warranty does Tnisesm provide?

Tnisesm offers a one‑year limited warranty covering manufacturing defects. If you encounter any issues, contact our support team for troubleshooting or replacement options.
